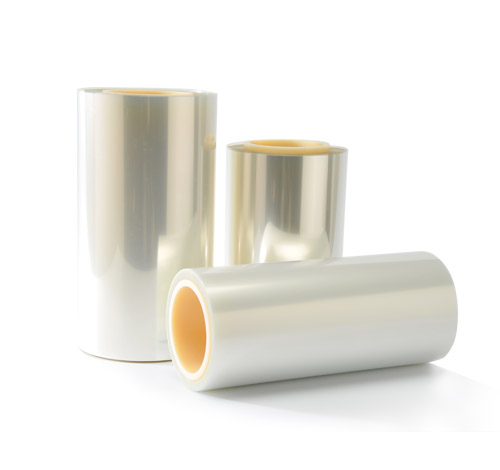

離型膜
所有我們提供的離型膜皆在無塵室中生產，已開發的離型膜市場已跨越洲際並受到許多客戶的認可。如需進一步的詳細資料，歡迎與我們連絡。
| I. 25μm series | |||
| Thickness (μm) | Release Strength (g/25mm) | Residual dhesive (%) | |
| Spec. 1 | 25.0 ±0.5 | 8.0 ±2.0 | > 92.0 |
| II. 30μm series | |||
| Thickness (μm) | Release Strength (g/25mm) | Residual dhesive (%) | |
| Spec. 1 | 25.0 ±0.5 | 8.0 ±2.0 | > 92.0 |
| Spec. 2 | 30.0 ±0.5 | 3.0 ±2.0 | > 92.0 |
| III. 38μm series | |||
| Thickness (μm) | Release Strength (g/25mm) | Residual dhesive (%) | |
| Spec. 1 | 38.0 ±0.5 | 15.0 ±6.0 | > 92.0 |
| Spec. 2 | 38.0 ±0.5 | 8.0 ±2.0 | > 92.0 |
| Spec. 3 | 38.0 ±0.5 | 3.0 ±2.0 | > 92.0 |
| IV. 50μm series | |||
| Thickness (μm) | Release Strength (g/25mm) | Residual dhesive (%) | |
| Spec. 1 | 50.0 ±0.6 | 35.0 ±10.0 | > 92.0 |
| Spec. 2 | 50.0 ±0.6 | 15.0 ±6.0 | > 92.0 |
| Spec. 3 | 50.0 ±0.6 | 8.0 ±2.0 | > 92.0 |
| V. 75μm series | |||
| Thickness (μm) | Release Strength (g/25mm) | Residual dhesive (%) | |
| Spec. 1 | 75.0 ±3.0 | 35.0 ±10.0 | > 92.0 |
